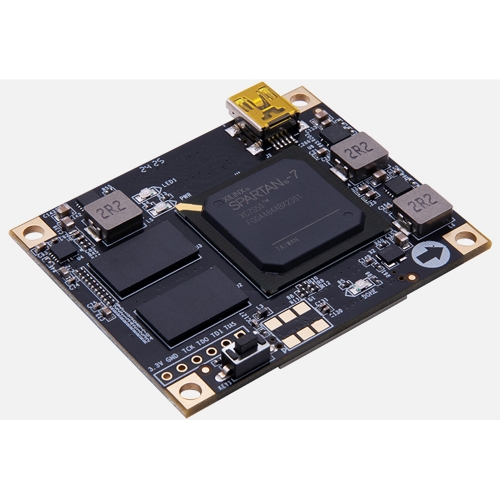

Xilinx Spartan-7 SoM FPGA Core Board

Industrial Grade 1G DDR3

key Features

Corresponding Development Board

·AX7050



*Learn about the corresponding development board, Click to see details>>



PRODUCT PARAMETERS

FPGA Chip Parameters

Core Board Chip

AC7050B

FPGA Chip

XC7S50-1FGGA484I

Logic Cells

52160

DDR3

1GB, Data Frequency 333.3MHz

CLB Flip-Flops

65200

Logic Cells

52160

DSP

120

Look Up Tables (LUTs)

8150

Block RAM

2700Kb

Expand IOs

114

Voltage Adjustable IOs

75

LVDS

37 Pairs

Chip Level

Industrial Grade

Speed Grades

-1

Working Temperature

-40°C to 85°C



Interface and Function

QSPI FLASH

128Mb, Used as Storage for FPGA Configuration Files and User Data

DDR3

1GB DDR3 32bit, Data Rate 667Mbps

JTAG

Reserve a 6-pin JTAG interface for Download and Debugging

Ｃrystal Oscillator

50MHz Provide Stable Clock Source for the System
Reserved  One Crystal Oscillator Welding Plates for user

Expansion Ports

2 x 80-Pin Panasonic Industrial Grade Connectors ( AXK580137YG) The matching connector in the carrier board is AXK680337YG



Power Supply Parameters

Voltage Input

+5 V DC







Package List

FPGA Core Board

1

Mini USB Cable

1

80-Pin Board to Board Connector (Panasonic AXK680337YG )

2









Structure Size

Size Dimension

55x45x8.4mm

Connector height

2.0mm

Number of Layers

8-Layer Core Board PCB

Board Thickness

0.06 inch



Expansion Port Definition

Get Started Quickly ，Shorten Learning and Development Time

Provide Documents to Study

Provide Schematic, PCB, Size Dimension, Package and Reference Design, that to Accelerate the Development of products with Core Board
