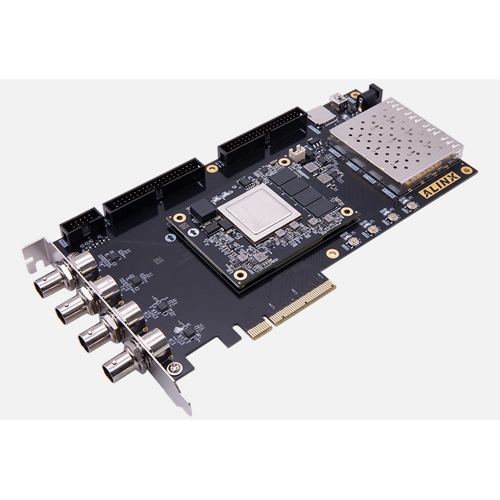

China PANGOMICRO Titan-2 Family FPGA Board
PCIe x8 interface, Fiber optic interface, SDI output interface, SDI input interface, 40-pin expansion interface
Meet the requirements of various PCIe high-speed data transmission, video image processing, and industrial control for users
Product Packge
FPGA Board
AN9767 Collection Packag
AN706 Collection Packag
AN9238 Collection Packag
Video Processing Packge
Luxury Package
FPGA Board
●
●
●
●
●
●
USB Downloader
●
●
●
●
●
●
AN9767
●
●
AN706
●
●
AN9238
●
●
AN5642
●
●
4.3-Inch LCD
●
●
Supporting Modules in the Package, Click to Learn More
Key Features
·Core Board
Learn More about the Core Board, Click to View>>
·FPGA Board
Product Parameters
SoM Core Board Parameters
FPGA Chip
PG2T390HFFBG900
FF
487200
LUT6
243600
DRM（36Kbits）
480
APM
840
GPLL
10
PPLL
10
ADC
1 dedicated analog channel; Reuse 11 analog channels
PCIe Gen3 x8
1
Working Temperature
Industrial grade -40℃-85℃
Speed Grade
-6
Interface and Function
DDR4
4x 2 GB DDR4, 64bit
QSPI Flash
Crystal Oscillator128Mbit QSPI FLASH, Used for FPGA Configuration File and User Data Storage
Crystal Oscillator
200MHz provides a stable clock source for the system
125MHz provides a stable clock output for the GTX transceiver
HSSTHP
16 channels of HSSTHP, each with 13.125Gb/s max, suitable for fiber optic communication and PCIe data communication
PCIe
PCIe x8, used for communicating with PCIe on the computer motherboard, with a single channel communication rate of up to 8Gbps
SFP
4-way high-speed SFP fiber optic communication interface, with each receiving and sending speed up to 10Gb/s
JTAG
10-pin 0.1-inch Standard JTAG Port for Debug and Download
3G-SDI
SDI video input and output interfaces each have 2 channels. Supports HDcctv 1.0, HD-SDI (ST 292) 3G- SDI (ST-424) and SD_ SDI (ST259) data input and output in different formats.
USB
Used for USB 2.0 High Speed Communication with PC
SD Card Slot
1 Micro SD Card Slot, Support SPI Mode
LED
2 LEDs on the core board and 5 LEDs on the expansion board
key
4 Keys
40-Pin Expansion Ports
Reserve two expansion ports with a spacing of 2.54mm and 40 pins, which can be used to connect various modules externally (such as binocular cameras, TFT LCD screens, high-speed AD modules, etc). The expansion port includes 1 5V power supply, 2x 3.3V power supplies, 3 ground power supplies, and 34 IO ports.
Power Supply Parameters
power supply
+12V DC, Max. Current 3A
Package List
FPGA Board
1
Cooling fan
1
Mini USB Cable
1
USB Downloader Cable
1
12V power supply
1
baffle
1
Structure Size
Size Dimension
Core board 80mm x 60mm，expansion board 215mm x 111mm
Number of Layers
16-Layer Core Board PCB, 6-Layer Carrier Board PCB Reserve independent power supply layer and GND layer

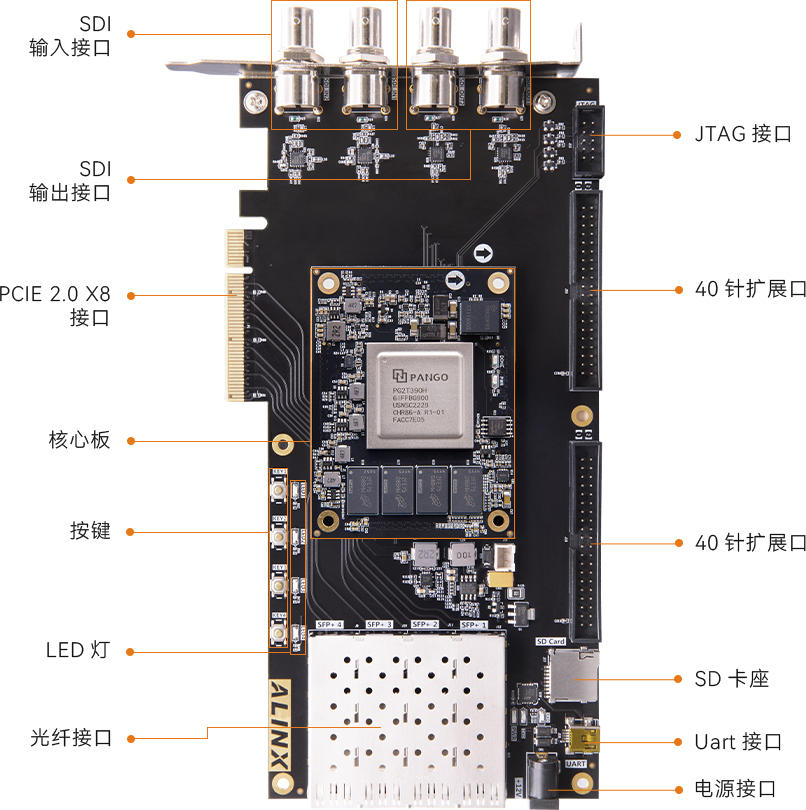

Rich extension interfaces
Multi Domain Development For High-Speed Transmission
Fiber optic communication, PCIe acceleration, video processing, high-speed data transmission
Adopting a mode of adding a core board and an expansion board, it facilitates users' secondary development and utilization of the core board. Rich peripheral interfaces: 1 PCIe x8 interface, 4x fiber optic interfaces, 2x SDI output interfaces, 2x SDI input interfaces, 1x UART serial interface, 1x SD card interface, 2x 40 pin expansion interfaces, etc. Meet the requirements of users for various high-speed data exchange, data storage, video transmission processing, and industrial control. It provides the possibility for early validation and later application of high-speed data transmission and exchange, data processing
High speed fiber optic transmission interface
Fiber Optic Video Transmission And Speed Testing

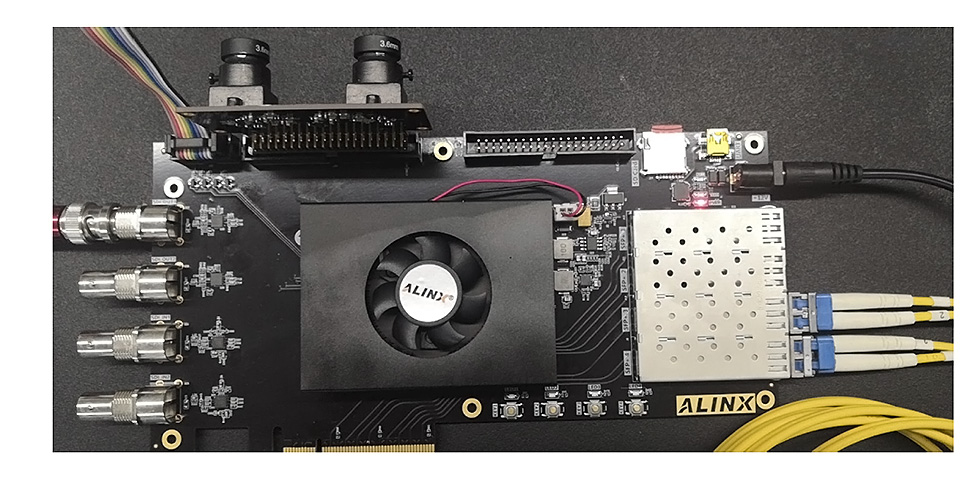

Expansion port connected to binocular camera for fiber optic video transmission
The development board collects video images through a camera and transmits them to another development board through a fiber optic interface. After receiving data through the fiber optic interface, it is displayed on the monitor through the SDI interface

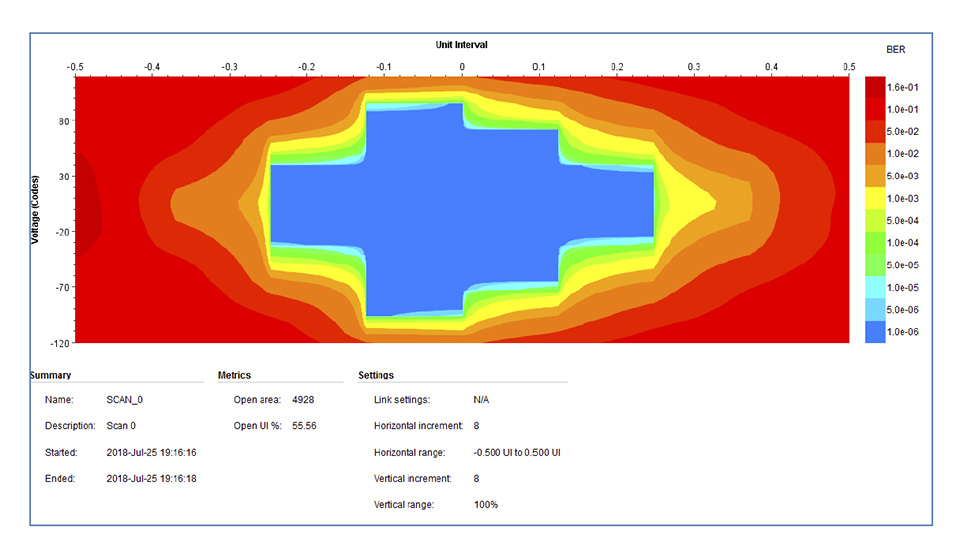

Optical fiber communication Link communication eye diagram with a speed of 10.0Gbps
Widely used binocular acquisition
Camera Acquisition System
Intelligent identification, medical security, onboard digital, industrial control, smart grid

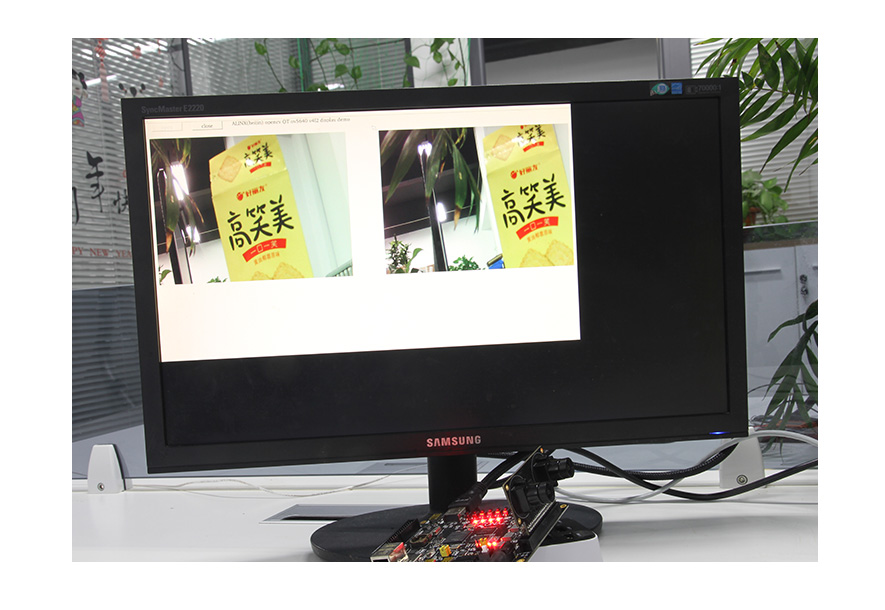

The binocular camera module AN5642 collects video and displays it on the display through the SDI interface of the development board, achieving binocular synchronous display.
Data collection display
Signal Data Acquisition System
Display diagram of AN9767 / AN706 module on computer
*The signal output from the signal source is connected to the AN9767 module and the waveform signal is displayed through an oscilloscope
*The signal output from the signal source is connected to the AN706 module, and the system is run to draw waveform data, which is displayed on the display through the SDI interface of the development board
