China PANGOMICRO Titan-2 Family FPGA Board
PCIe 2.0 x8 interface, fiber optic interface, HDMI output interface, HDMI input interface, 40-pin expansion interface
Meet the requirements of various PCIe high-speed data transmission, video image processing, and industrial control for users
Techinal Support
Supporting Verilog HDL Demos and Docuemnts，All Doucments Saved in Dropbox, after buy the board, email to get it.
01. Pango Design Suite 2021.1-sp7 Installation
02. LED water lamp experiment and simulation
03. Key detection experiment
04. PLL phase-locked loop output test
05. Serial port Transmitting and Receiving experiment
06. Key debounce experiment
07. LM75 Temperature Test Routine
08. SD Card Read and Write Experiment
09. HDMI Programming Output Experiment
10. 4.3 inch screen color bar output
11. 7-inch screen color bar output
12. HDMI input output loop pass test
13. DDR3 Reading and Writing Test Experiment
14. AN831 Recording and Playback
15. Character HDMI display
16. Character 4.3 inch screen display
17. Character 7-inch screen display
18. SD card image HDMI display
19. SD card image 4.3 inch LCD display
20. SD card image 7-inch LCD display
21. AN5642 camera captures HDMI display
22. SOBEL Edge Detection Experiment
23. AD9238 waveform display routine
24. AD7606 waveform display routine
25. ADDA Test Routine
26. AD9767 Waveform Display Experiment-Dual channel Sine Wave Experiment
27. AD9767 Waveform Display Experiment-Dual channel Triangle Wave Experiment
28. 1.25G Fiber optic communication testing
PRODUCT PACKGE
FPGA Board
AN9767 Collection Package
AN706 Collection Package
AN9238 Collection Package
Video Processing Packge
Luxury Package
FPGA Board
●
●
●
●
●
●
USB Downloader
●
●
●
●
●
●
AN9767
●
●
AN706
●
●
AN9238
●
●
AN5642
●
●
4.3-Inch LCD
●
●
Supporting Modules in the Package, Click to Learn More
Key Features

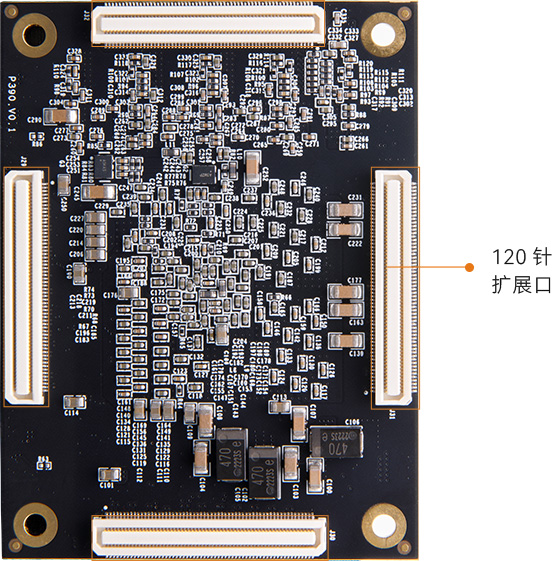

·Core board
Learn More about the Core Board, Click to View>>
·FPGA Board
PRODUCT PARAMETERS
SoM Core Board Parameters
FPGA Chip
PG2T390HFFBG900
FF
487200
LUT6
243600
DRM（36Kbits）
480
APM
840
GPLL
10
PPLL
10
ADC
1 dedicated analog channel; Reuse 11 analog channels
Working Temperature
Industrial grade -40℃-85℃
PCIe Gen3 x8
1
Speed Grade
-6
Interface and Function
DDR4
4x 2 GB DDR4, 64bit
QSPI Flash
Crystal Oscillator128Mbit QSPI FLASH, Used for FPGA Configuration File and User Data Storage
HSSTHP
16 channels of HSSTHP, each with 13.125Gb/s max, suitable for fiber optic communication and PCIe data communication
PCIe
PCIe x8 interface, used for communicating with PCIe on the computer motherboard, with a single channel communication rate of up to 8Gbps
SFP
4-way high-speed SFP fiber optic communication interface, with each receiving and sending speed up to 10Gb/s
HDMI input output
Two HDMI input and output channels each, supporting 4K@30 frame input and output
SATA
2-way SATA interface with external hard drive
USB
Used for USB 2.0 High Speed Communication with PC
SD Card Slot
1 Micro SD Card Slot, Support SPI Mode
40-Pin Expansion Ports
One 40 pin 2.54mm spacing expansion port that can be connected to various black gold modules (binocular camera, TFT LCD screen, high-speed AD module, etc.). The expansion port includes 1 5V power supply, 2 3.3V power supplies, 3 ground power supplies, and 34 IO ports.
JTAG
10-pin 0.1-inch Standard JTAG Port for Debug and Download
Crystal Oscillator
200MHz provides a stable clock source for the system
125MHz provides a stable clock output for the GTX transceiver
LED
2 LEDs on the core board and 5 LEDs on the expansion board
key
2 Keys
Power Supply Parameters
power supply
+12V DC, Max. Current 3A
Package List
FPGA Board
1
Cooling fan
1
Mini USB Cable
1
USB Downloader Cable
1
12V power supply
1
Structure Size
Size Dimension

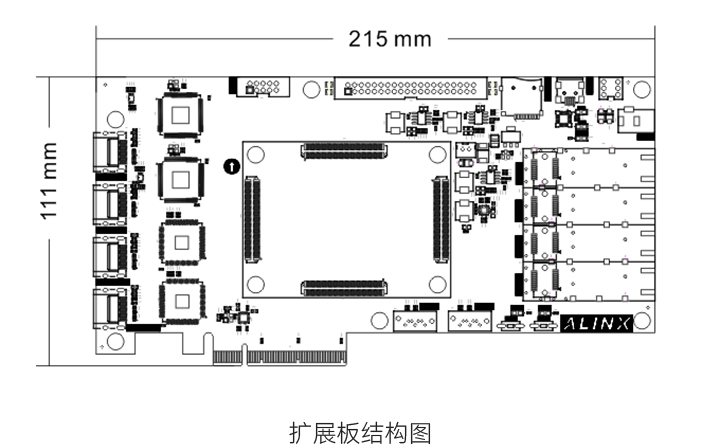

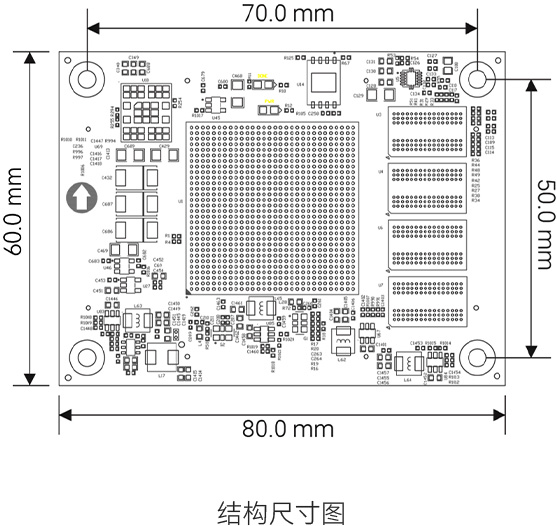

Core board 80mm x 60mm, expansion board 215mm x 111mm
Number of Layers
16-Layer Core Board PCB, 6-Layer Carrier Board PCB Reserve independent power supply layer and GND layer

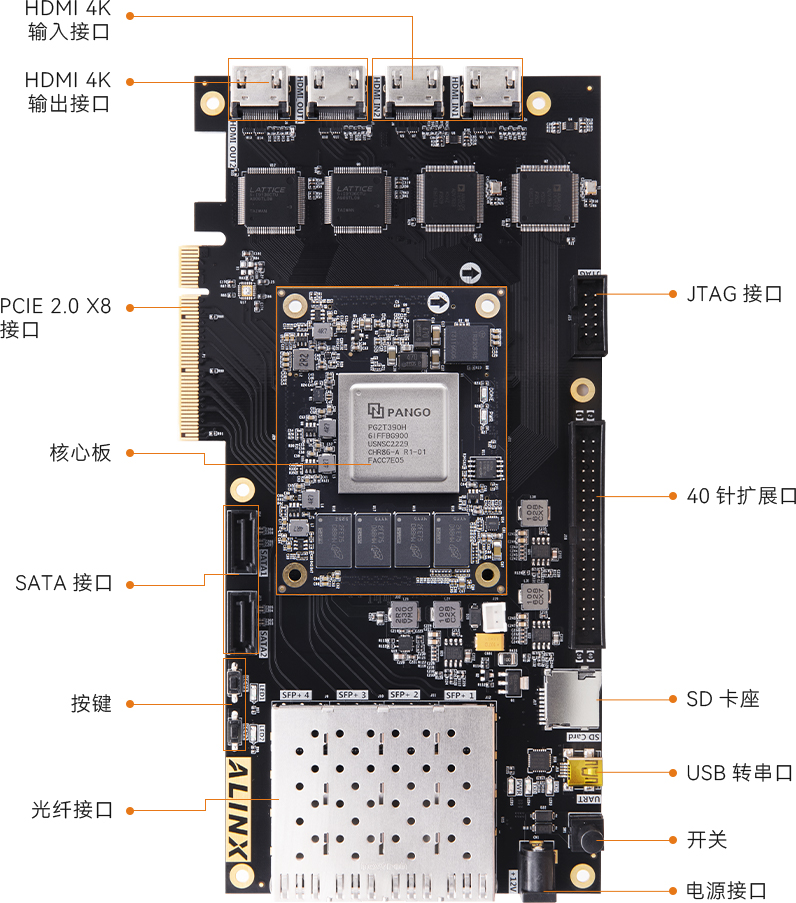

Rich extension interfaces
Multi domain development for high-speed transmission
Fiber optic communication, PCIe acceleration, video processing, high-speed data transmission
Adopting a mode of adding a core board and an expansion board, it facilitates users' secondary development and utilization of the core board. Rich peripheral interfaces including: 1 PCIe 2.0 x 8 interface, 4 fiber optic interfaces, 2 HDMI output interfaces, 2 HDMI input interfaces, 2 SATA interfaces, 1 UART serial interface, 1 SD card interface, 1 40 pin expansion interface, etc. Meet the requirements of various PCIe high-speed data transmission, video image processing, and industrial control for users. Pre validation and post application of high-speed video transmission, high-speed fiber optic communication, and PCIe data processing
Widely used binocular acquisition
Camera acquisition system
Intelligent identification, medical security, onboard digital, industrial control, smart grid
The binocular camera module AN5642 performs video capture and displays it on the monitor through the HDMI interface of the development board, achieving binocular synchronous display.
Data collection display
Signal data acquisition system
Display diagram of AN9767 / AN706 module on computer
*The signal output from the signal source is connected to the AN9767 module and the waveform signal is displayed through an oscilloscope
*The signal output from the signal source is connected to the AN706 module and the system is run to draw waveform data, which is displayed on the display through the HDMI interface of the development board
