▶ Product Description

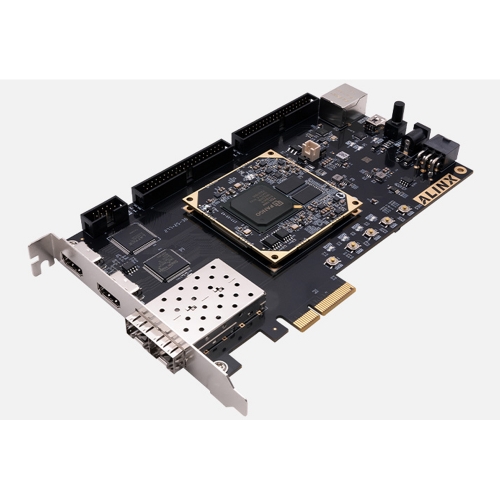

The AXP100B FPGA Development Boar is PANGO Logos2 series device, delivers standout performance with DDR3 SDRAM, QSPI Flash, PCIe, SFP+, HDMI, Gigabit Ethernet.

Provide high-speed communication (PCIe, SFP+) and video applications (HDMI).

▶ Applications

• ● Communication

• ● Image and video processing

• ● Data analysis

• ● Network information security

• ● Instrumentation

▶ Key Features

• System-on-Module

  ● PANGO Logos-2 PG2L100H:◆ 28 nm FPGA fabric
  ◆ HSST 6.6 Gbps Transceivers
  ● Pluggable module with 4 x Panasonic board-to-board connectors
  ● 1 GByte (32-bit) DDR3 SDRAM
  ● 2 x 16 MB QSPI Flash

• Base Board

  ● 1 x PCIe® Gen2 ×4
  ● 1 x Gigabit Ethernet
  ● 1 x UART (USB to UART)
  ● 1 x Micro SD
  ● 1 x 512 Byte EEPROM 24LC04
  ● 1 x Temperature sensor LM75A
  ● 2 x SFP+ (per line 6.6Gbps)
  ● 2 x HDMI (1 x HDMI in + 1 x HDMI out)
  ● 2 x 40-pin Expansion Port (40 pin 2.54mm spacing, with 34 IOs, connected to ALINX modules such as binocular cameras, TFT LCD screens, high-speed AD modules, etc.)
  ● LED (1 x PWR + 1 x RXD + 1 x TXD + 4 x LED) + KEY (1 x reset + 4 x KEY)
  ● 12V single supply
  ● Dimensions: 188 x 106 mm form factor

▶ Specifications

* The AXP100B development board consists of a P100 SoM and base board. If you want to purchase P100 SoM separately.
Please check the Relevant Products at the bottom of the page and click to learn more details.
