FH7621

HOME >

ALINX

FH7621

짧은설명: 8K HDMI2.1 Video Input / Output Module FMC HPC Board FH7621

판매가: 3,003,000원 <관세ㆍ부가세 포함>

구매제한: 옵션당 최소 1개

구매혜택: 할인 : 적립 마일리지 :

배송비

0원 / 주문시결제(선결제) 조건별배송

택배

방문 수령지 : 경기도 성남시 중원구 사기막골로 99 성남센트럴비즈타워2차 B동 913호

상품코드: 1000618947

제조사: ALINX

FH7621

0원

총 상품금액

총 할인금액

총 합계금액

상품상세정보
배송안내
교환 및 반품안내
상품후기 (0)
상품문의 (0)

상품상세정보

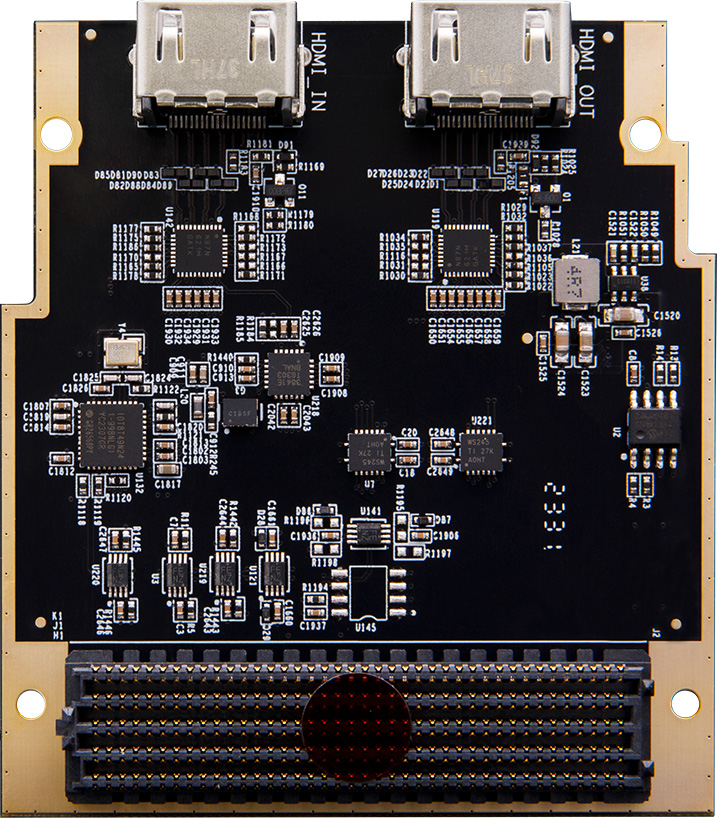

HDMI 8K input/output FMC board

The FMC interface is a module that converts one HDMI2.1 input and one HDMI2.1 output, and the HDMI interface supports up to 8K@60Hz


48Gbps total bandwidth
8K ultra high resolution transmission

As 8K ultra high definition increases the number of captured pixels to 7680x3840, the bandwidth of a 24-bit 8Kp60 uncompressed video stream may exceed 40 Gbps, which is four times higher than 4K UHD and requires more bandwidth to capture, transmit, and store this high-quality video


Video bandwidth required for 4K and 8K resolutions

Product parameters

Parameter function

Chip model

NB7NQ621M

Resolution

Input maximum support 8K@60Hz Maximum output support 8K@60Hz

video interface

HDMI 2.1

FMC interface

FMC HPC connector

Interface display


Functional structure diagram


Dimensional structure


Pin Assignment

FMC HPC interface


AMD chip product portfolio
Can provide 100G Ethernet for products

8K video applications are rapidly developing in the fields of professional media and consumer applications, with the advantages of 8K including excellent image quality and immersive viewing experience. AMD Xilinx UltraScale+ ™ Series and Versal ™ Adaptive SoC and other devices provide 100G Ethernet, a flexible and reprogrammable platform for 8K video routing, switching, processing, streaming and presentation, integrated connectivity, video processing, codecs, and more, fully meeting your media connectivity needs.
