OVERVIEW

Product Description

The ACRF47 system-on-chip (SoC) system-on-module (SOM) combines high-end AMD/Xilinx Zynq™ UltraScale+™ RFSoC-series ZU47DR device with fast DDR4 SDRAM,dual parallel Quad-SPI Flash and thus forms a complete and powerful embedded processing system. Integrate hardware and software to help you provide a prototype of a high-performance wireless receiver system and perform air signal acquisition and analysis

Applications

● 5G FR1/FR2 RF and baseband
● phased array system
● Radar system
● Software radio
● Spectrum monitoring
● Medical system

Key Features

● AMD/Xilinx Zynq™ Ultrascale+™ RFSoC:
◆ ARM® quad-core Cortex™-A53 up to 1.333GHz
◆ ARM® dual-core Cortex™-R5F up to 533MHz
◆ 16nm FinFET+ FPGA fabric
◆ Digital RF-ADC, RF-DAC● Pluggable module with 2 x Panasonic board-to-board connectors
● 4 GByte (64-bit) DDR4 SDRAM on PS
● 2 GByte (32-bit) DDR4 SDRAM on PL
● 1Gb QSPI Flash
● Gigabit transceivers◆ 8 x GTY, up to 28.21 Gbps
◆ 4 x GTR, up to 6.6 Gbps● 8 x 14bit ADC, up to 5GSPS
● 8 x 14bit DAC, up to 9.85GSPS
● Work temperature range of -40°C to +85°C
● 5V single supply
● Dimensions: 115 x 85 mm form factor

PRODUCT INFORMATION

Specifications

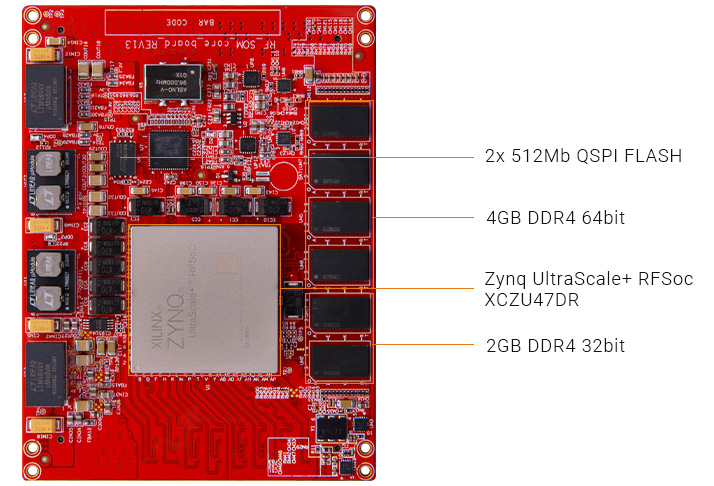

What's Inside

Module Features

Featuring the AMD/Xilinx Zynq™ UltraScale+™ RFSoC ZU47DR-2FFVE1156I

* We have Zynq™ UltraScale+™ RGSoC development boards that uses this Zynq™ UltraScale+™ RFSoC module, to get started with development straight out of the box.

Please check the Relevant Products at the bottom of the page and click to learn more details.

PRODUCT SELECTION MATRIX

Product Matrix

Product Model	Preferred Model	MPSoC	DDR4 ECC SDRAM (PS)	DDR4 SDRAM (PL)	QSPI Flash	GTR	GTY	Temp. Range	USD Price
ACRF47		ZU47DR-2FFVE1156I	4 GB	2 GB	2 x 512 Mb	4	8	-40°C~+85°C	11227

1. For non-preferred models, a minimum order quantity (MOQ) may apply if the products are not in stock.
2. We offer custom configuration, a MOQ applies.
Please contact us for more details.

We offer complete documentations and a lot of demos and tutorials.
Please contact us should you have any need.
