▶ Product Description

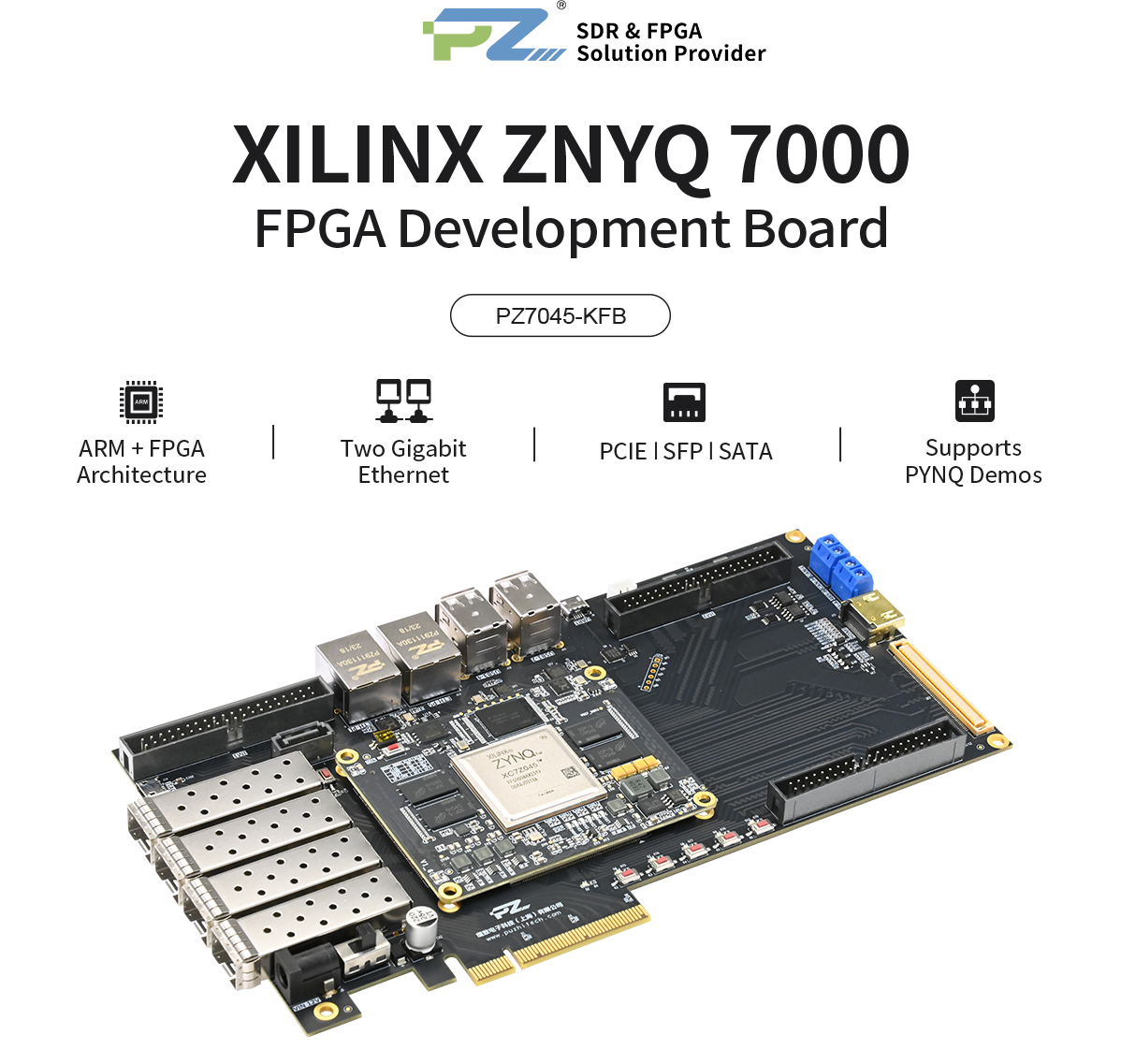

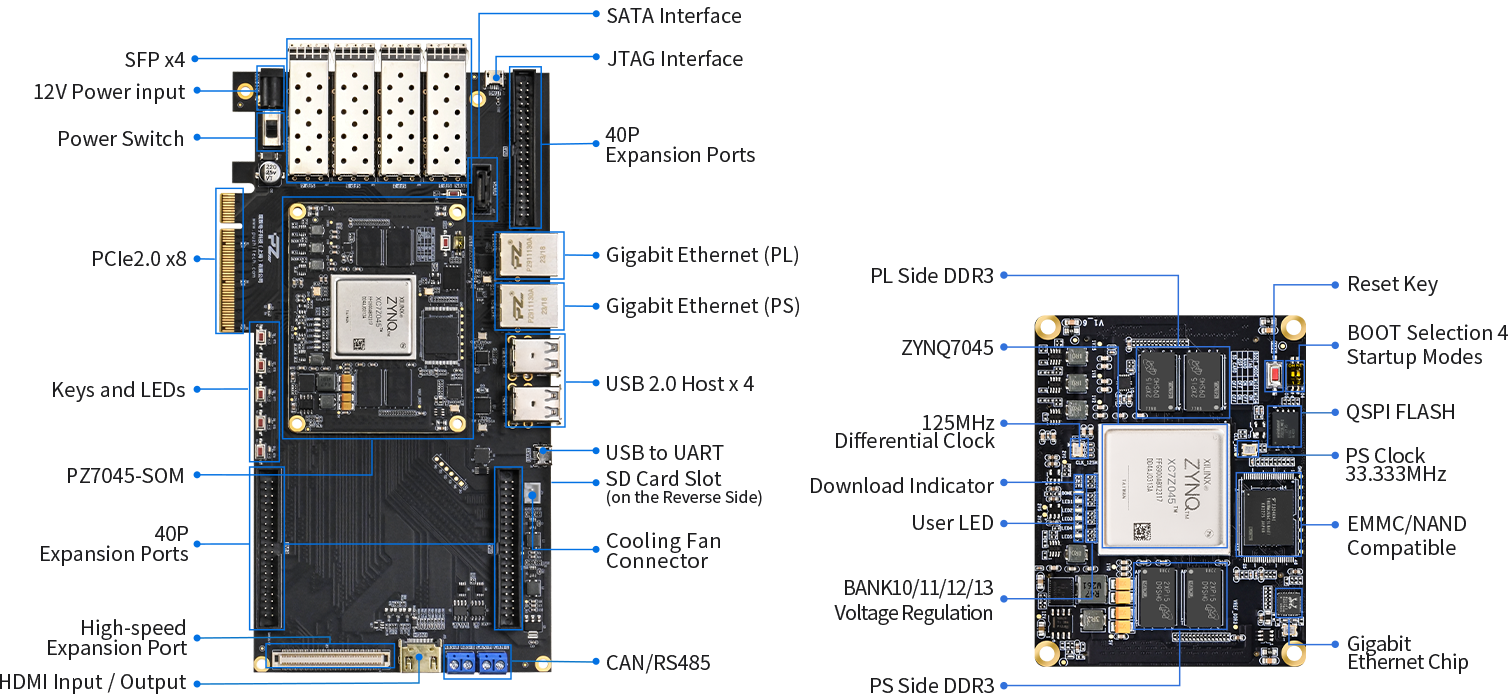

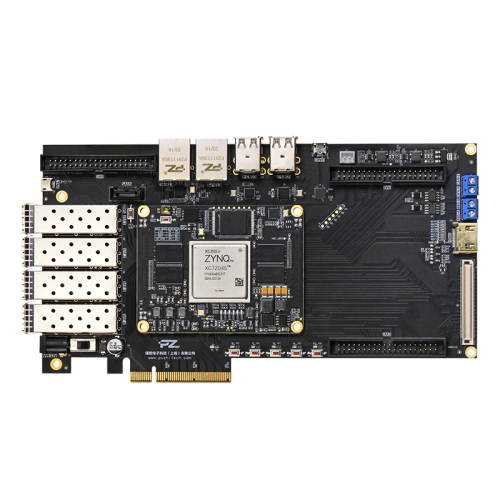

▶ Interface Function Display

▶ Product Parameters

Core Board Main Parameters

FPGA Dev. Board	PZ7045-KFB
FPGA Chip	XC7Z045-2FFG900I
Processor Core	Dual Core ARM Cortex-A9, Main Frequency 800Mhz
Speed Grade	2
Chip Level	Industrial Grade（-40°C~+85°C）
Logic Cells	350K
Lookup Tables	218600
Flip-Flops	437200
DSP Slices	900
BLOCK RAM	19.2Mb
DDR3/DD3L	Total 2GB, PS Side 1GB/ PL Side 1GB
QSPI FLASH	256Mb, to Store Startup Files and User Files
EMMC	8GB, to Store Startup Files and User Files
Start-up Mode	JTAG/QSPI/SD, Onboard Dial Switch Selection
Number of GTX	4 Bank, 16 Pairs of TX/RX each
PS Side MIO	24
PL Side IO	Total 240 Single-end / 120 Pairs of Differential Pairs of which, 48 IOs Levels fixed at 1.8V, 192 IOs Levels 1.8/2.5/3.3V Adjustable (Default 3.3V)
Crystal Oscillator	Single-ended Crystal 33.3333MHz for PS Differential Crystal 200MHz for PL Differential Crystal 125MHz for the GT Transceiver Reference Clock
Core Board Form Factors	3.30 inch x 2.55 inch (83.8mm x 64.8mm)

Interfaces and Function

JTAG Interface	1
UART/RS485/CAN	1/1/1
SD Card Slot Interface	1
USB 2.0 Interface	4 USB Host, Connect to Peripherals
Gigabit Ethernet	1 (PS Side)
HDMI	1 HDMI Input/ Output
SATA Interface	1
SFP Interface	4
PCIE2.0	x8
User LED	5
Keys	5
Cooling Fan Connectors	1 Channel, 12V Power Supply
Voltage / Current	12V/3A
Board Form Factors	8.66 inch x 4.57 inch (220mm x 116mm)
40Pin Expansion Port	Three Expansion Ports/ 96 single-ended signals Each Expansion Port to Connect Puzhi Modules (AD/DA, Camera, LCD)，Expansion Port including 5V power supply，3.3V power supply, 6 Ground, 32 IOs

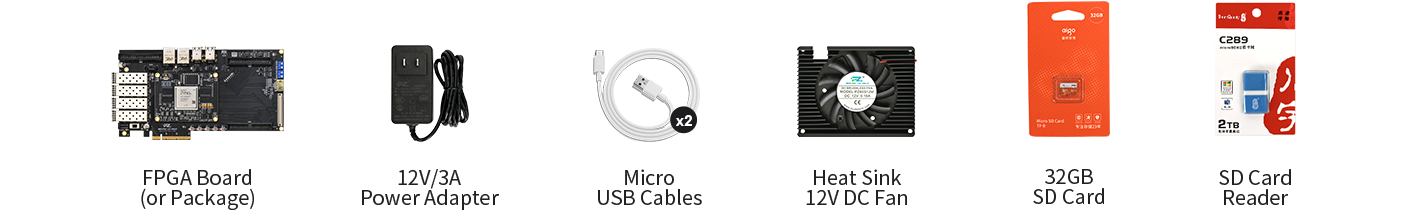

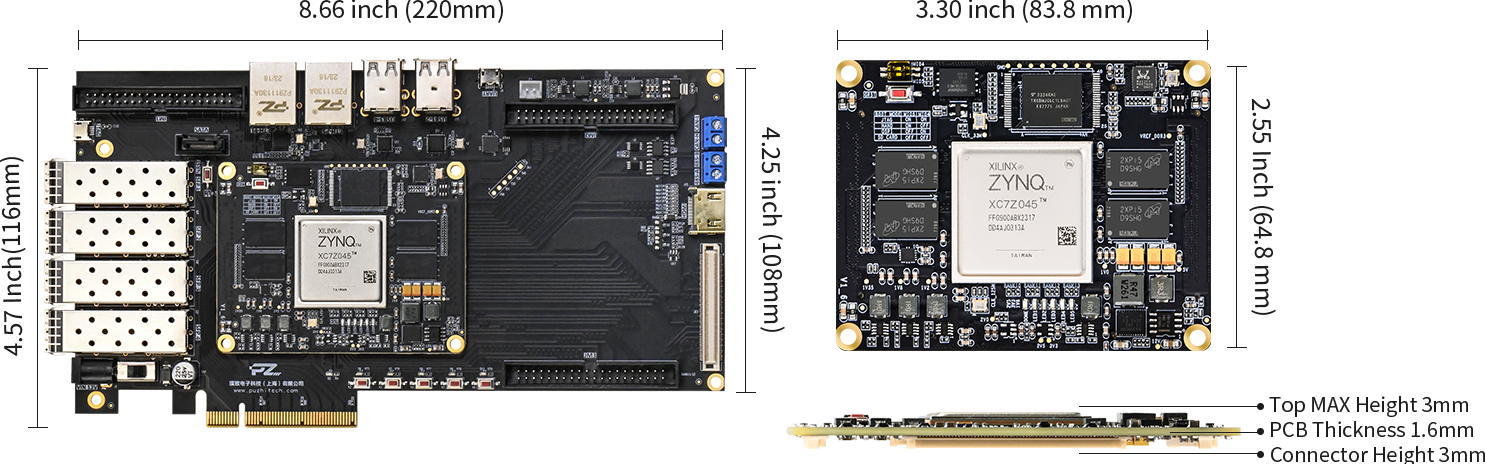

▶ Product Dimensions

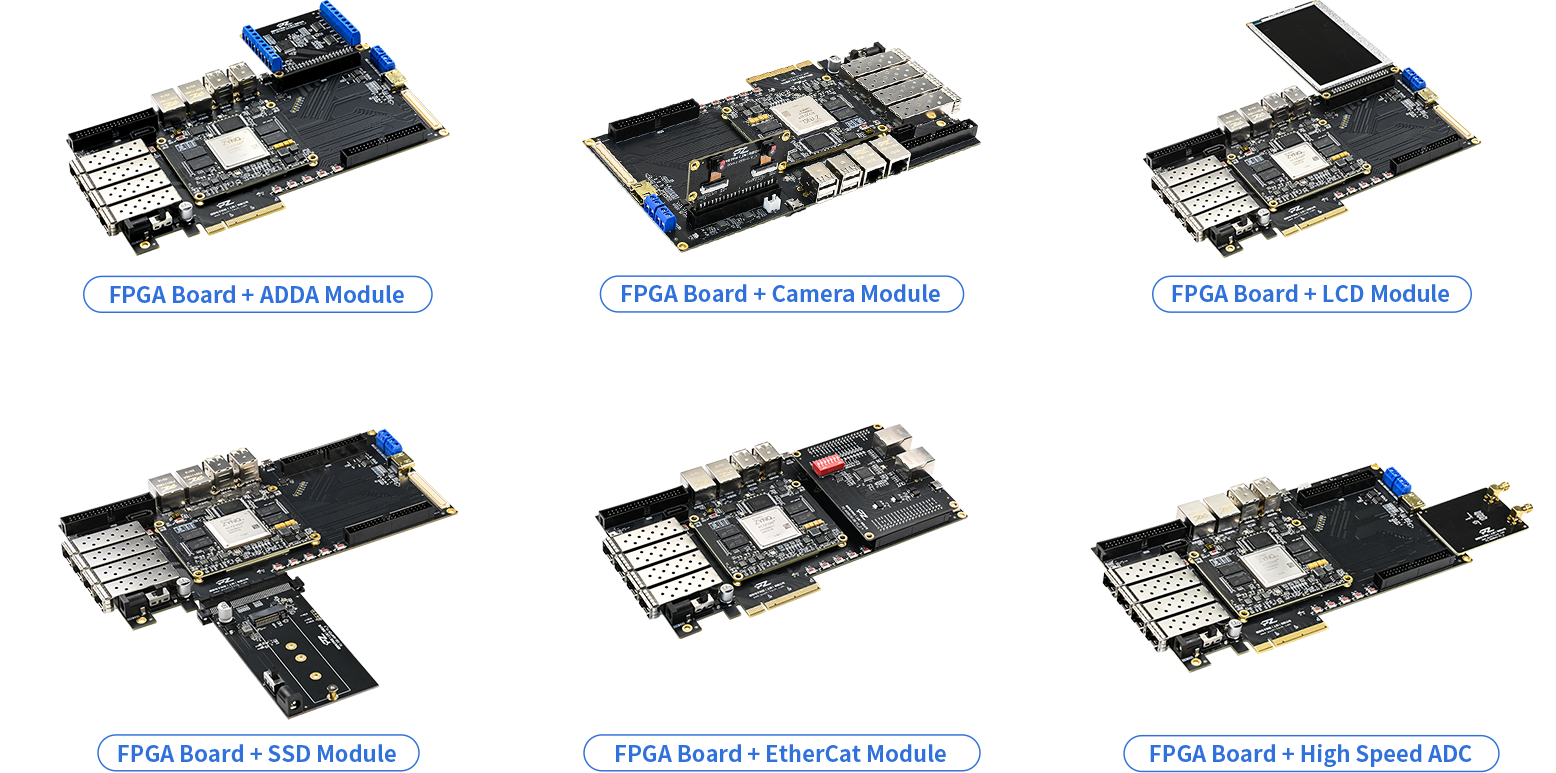

▶ Demos Come with the Board

Contact Customer Service after Purchase Files Saved in Google Drive/ Yandex/ Dropbox

Demos Constantly Being Updated... ...

1
FPGA Logic Demos
- 01.
  Introduction to ZYNQ
- 02.
  Vivado Environment Introduction and Installation
- 03.
  LED Flashing
- 04.
  PWM Control of LED
- 05.
  Key Debounce and LED Control
- 06.
  FPGA on-chip RAM Read and Write
- 07.
  FPGA on-chip ROM Read and Write
- 08.
  FPGA on-chip PLL Configuration
- 09.
  FPGA on-chip FIFO Usage
- 10.
  DR3 Control Read and Write on the FPGA Side
- 11.
  I2C Read and Write E2PROM
- 12.
  I2C Read and Write Touch Screen Registers
- 13.
  HDMI Output Image
- 14.
  LCD Picture Display
- 15.
  Binocular Camera Output and HDMI Display Image
- 16.
  AD-AD7606/7608 8-channel Acquisition Voltage
- 17.
  DA 8-channel Output Sine Wave, Triangle Wave Square Wave
- 18.
  PL Side Gigabit Ethernet communication
- 19.
  SFP Bit Error Rate Test
- 20.
  High-speed ADC Acquisition (250MSPS)
2
SDK Demos
- 01.
  ARM Bare Metal Output "hello world"
- 02.
  PS Timer Interrupt Experiment
- 03.
  PS Side EMIO Control LED Flashing
- 04.
  EMIO Key Control LED
- 05.
  Dual-core AMP
- 06.
  Custom IP
- 07.
  Timer Interrupt
- 08.
  UART Serial Port Communication
- 09.
  RS485 Communication
- 10.
  CAN Bus Communication
- 11.
  I2C Communication
- 12.
  Gigabit Ethernet LWIP Application
- 13.
  Gigabit Ethernet Remote Upgrade
- 14.
  PS Side DDR3 Read and Write
- 15.
  PS Side EMMC Read and Write
- 16.
  AXI-DMA Read and Write
- 17.
  SD Card Read and Write
- 18.
  ADC Acquisition Gigabit Ethernet Transmission
- 19.
  LCD Image Display
- 20.
  LCD Display Image
- 21.
  HDMI Display of Binocular Camera Images
- 22.
  SD Card Picture HDMI Output Display
- 23.
  Binocular Camera Photography Experiment
- 24.
  PCIE Bandwidth Test
3
Linux Demos
- 01.
  Introduction to Virtual Machine and Ubuntu System
- 02.
  Ubuntu System Installation
- 03.
  Petalinux Tool Installation
- 04.
  NFS Service Software Installation
- 05.
  SD Card to Start the Linux System
- 06.
  QSPI Flash to Start Linux
- 07.
  QSPI+EMMC Start Linux
- 08.
  Control LED under Linux System
- 09.
  HDMI Display under Linux
- 10.
  Drive USB Mouse and Keyboard under Linux
- 11.
  Application of QT on ZYNQ
- 12.
  Linux Common Commands
4
PCIE Topics
- 01.
  PCIE Read/Write Speed Test
- 02.
  PCIE's Access to DDR
- 03.
  PCIE Control GPIO
- 04.
  PCIE's Image Transfer HDMI Display
- 05.
  PCIE's OV5640 Image Transmission
5
Supports PYNQ
