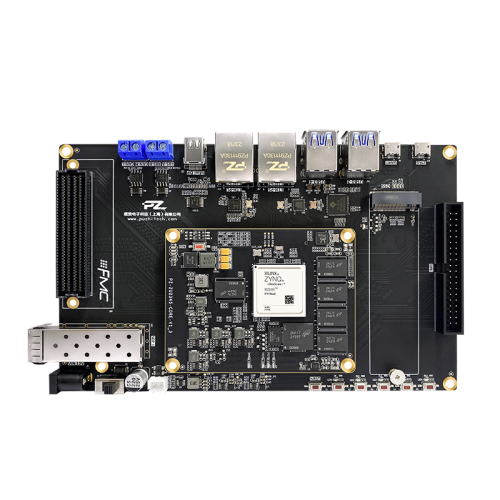

PZ-ZU5EV-FL-KFB

짧은설명: Puzhi FPGA ZYNQ UltraScale+ ZU5EV-FL Development Board

판매가: 1,881,000원 <관세ㆍ부가세 포함>

구매제한: 옵션당 최소 1개

구매혜택: 할인 : 적립 마일리지 :

배송비

0원 / 주문시결제(선결제) 조건별배송

금액별배송비

0원 이상 ~ 100,000원 미만 110,000원
100,000원 이상 ~ 200,000원 미만 99,000원
200,000원 이상 ~ 300,000원 미만 88,000원
300,000원 이상 ~ 400,000원 미만 77,000원
400,000원 이상 ~ 500,000원 미만 66,000원
500,000원 이상 ~ 600,000원 미만 55,000원
600,000원 이상 ~ 700,000원 미만 44,000원
700,000원 이상 ~ 800,000원 미만 33,000원
800,000원 이상 ~ 900,000원 미만 22,000원
900,000원 이상 ~ 1,000,000원 미만 11,000원
1,000,000원 이상 0원

배송비 계산 기준 : 판매가

택배

방문 수령지 : 경기도 성남시 중원구 사기막골로 99 성남센트럴비즈타워2차 B동 913호

상품코드: 1000619032

제조사: Puzhi

PZ-ZU5EV-FL-KFB

0원

총 상품금액

총 할인금액

총 합계금액

상품상세정보
배송안내
교환 및 반품안내
상품후기 (0)
상품문의 (0)

상품상세정보

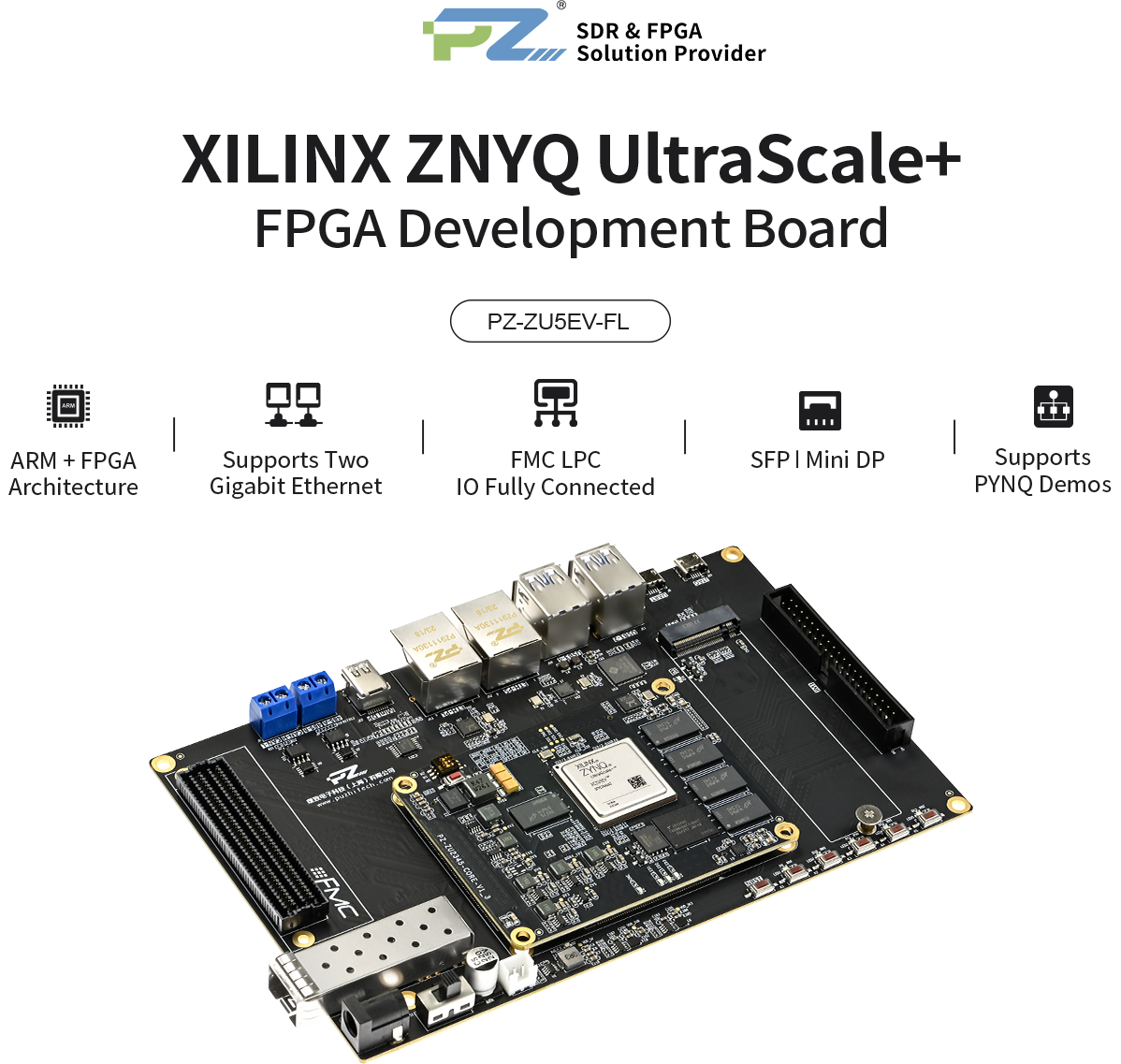

▶ Product Description

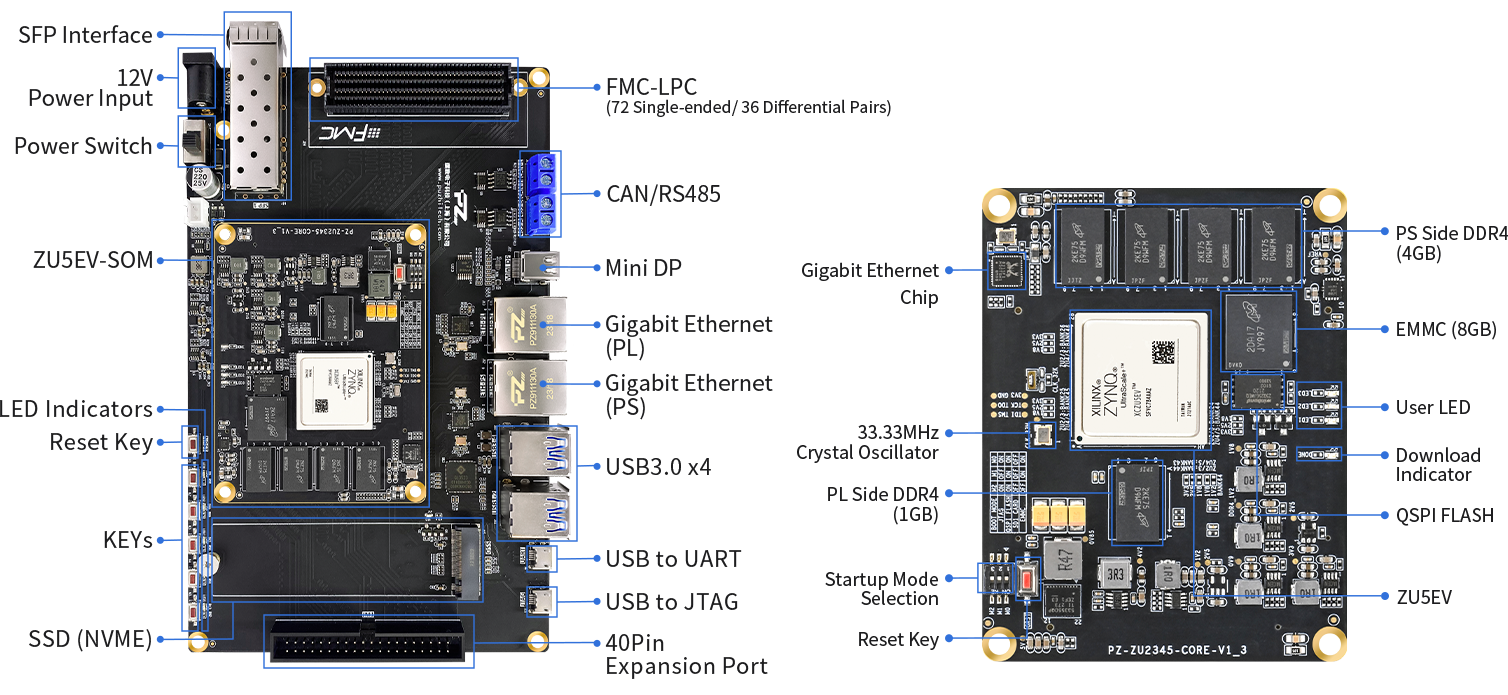

▶ Interface Function Display

▶ Product Parameters

Core Board Main Parameters

FPGA Dev. Board	PZ-ZU5EV-FL-KFB
FPGA Chip	XCZU5EV-2SFVC784I
Processor Core	4 x Cortex-A53-1.3Ghz 2 x Cortex-R5-533Mhz
Speed Grade	2
Chip Level	Industrial Grade（-40°C~+85°C）
Logic Cells	256K
Lookup Tables	234000
Flip-Flops	117000
DSP Slices	1248
BLOCK RAM	5.1Mb
DDR4	PS Side 4GB, PL Side 1GB
QSPI FLASH	256Mb, to Store Startup Files and User Files
EMMC	8GB
Start-up Mode	JTAG/QSPI/SD/EMMC, Default SD startup
User LED	3
Reset Key	1
PS Side GTR	4 Pairs of TX/RX
PL Side GTH	4 Pairs of TX/RX
PS Side MIO	38
PL Side IO	Total 192 single-ended: 96 IOs, 1.2V/1.8V Adjustable, Default 1.8V 96 IOs, 1.8V/2.5V/3.3V Adjustable, Default 3.3V
Crystal Oscillator	Single-ended Crystal 33.3333MHz for the PS Differential Crystal 200MHz for the PL Differential Crystal 125MHz for the GT Transceiver Reference Clock
Core Board Form Factors	3.30 inch x 2.55 inch (83.8mm x 64.8mm )

Interfaces and Function

JTAG Downloader	1
UART/RS485/CAN	1/1/1
SD Card Slot Interface	1
SSD Memory Interface	1 (PS Side)
Gigabit Ethernet	PS Side 1 / PL Side 1
Mini DP Output	1
LED	5
KEY	5
SFP	1
FMC Expansion Port	FMC LPC (72 single-ended/36 differential pairs)
Voltage / Current	12V/3A
Board Form Factors	7.09 inch x 4.45 inch (180mm x 113mm )
Technology	Black Matte. Immersion Gold Process
40Pin Expansion Port	32 Single-ended/16 Differential pairs Reserve one 40-pin 0.1 inch Expansion Port，to Connect Puzhi Modules (AD/DA, Camera, LCD)，Expansion Port including 5V power supply，3.3V power supply, 6 Ground, 32 IOs

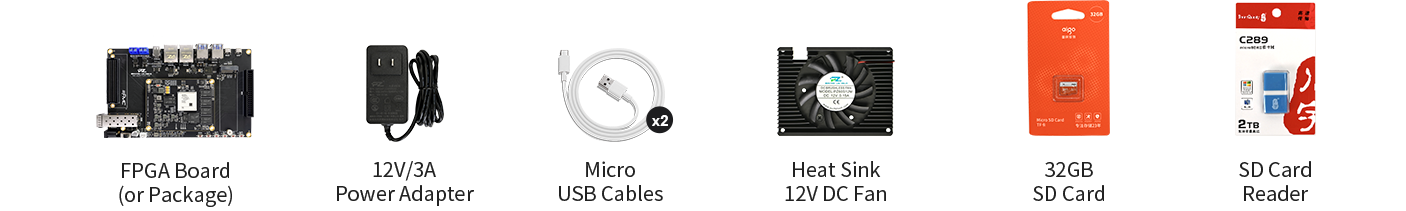

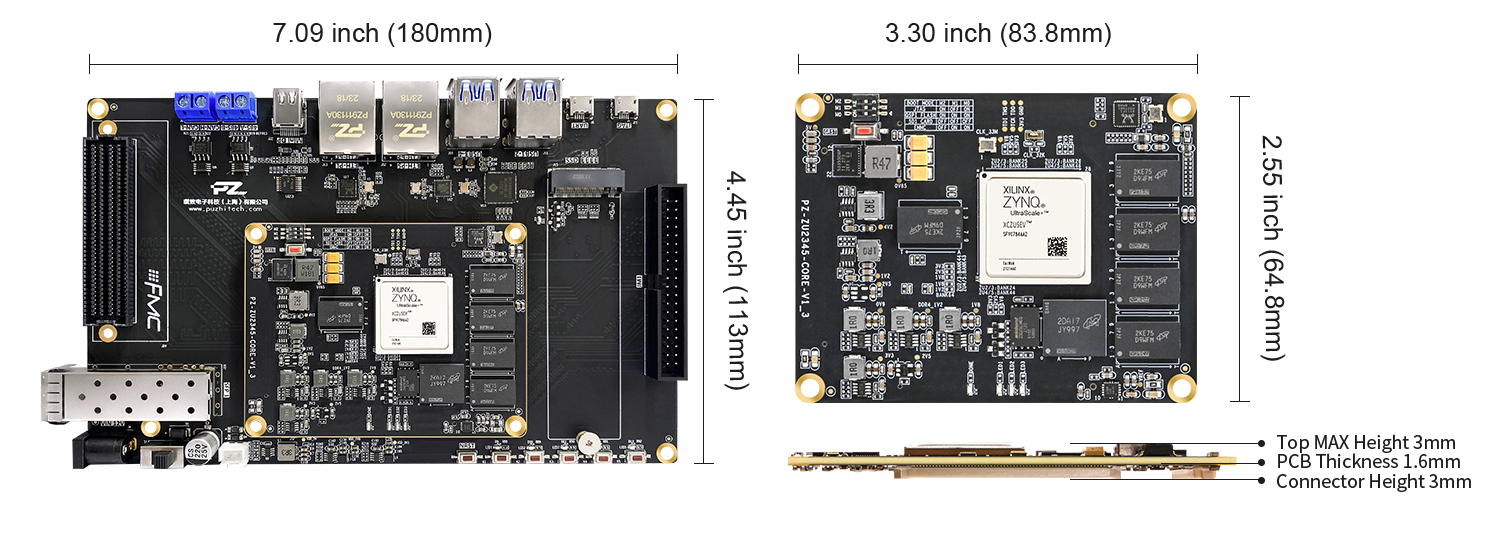

▶ Product Dimensions

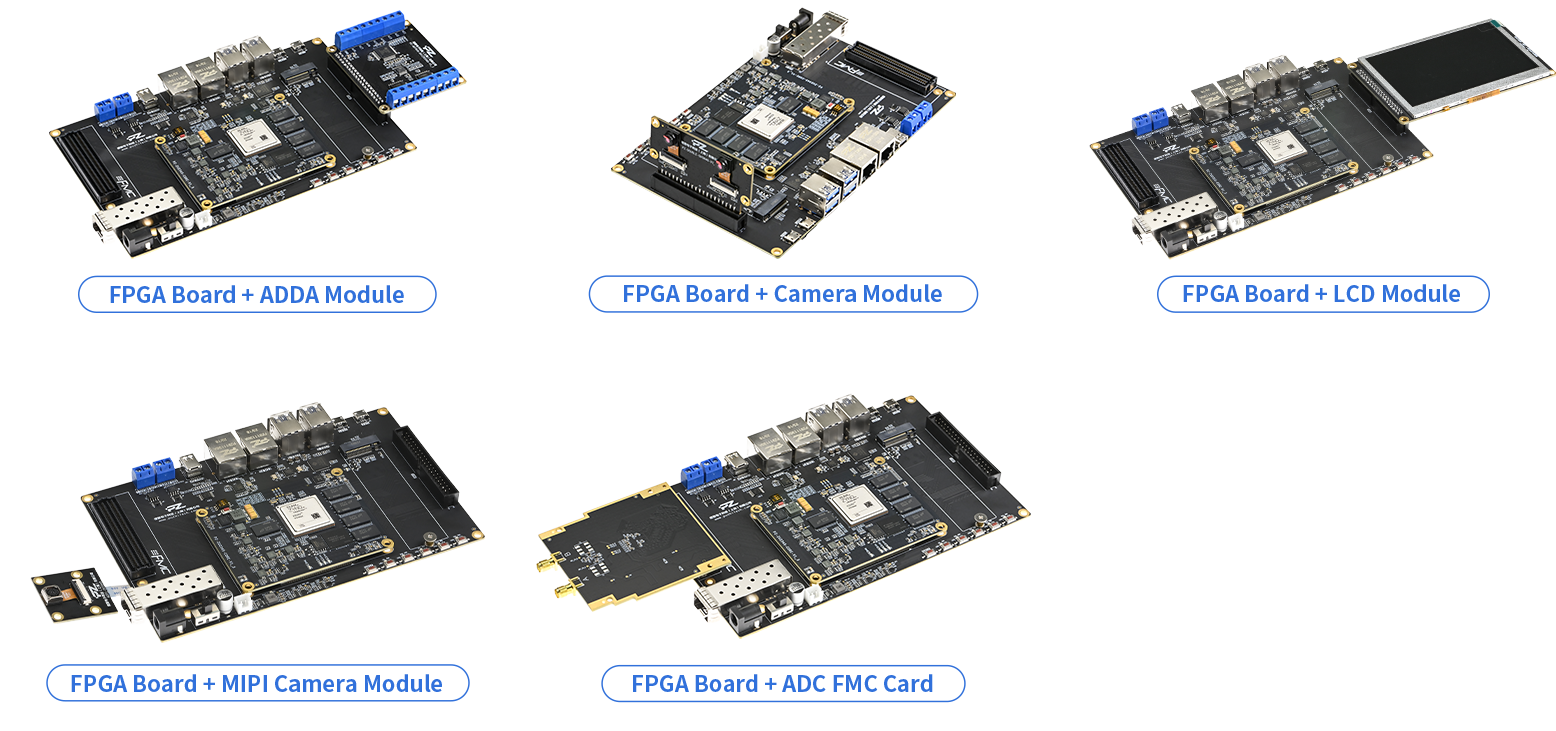

▶ Demos Come with the Board

Contact Customer Service after Purchase Files Saved in Google Drive/ Yandex/ Dropbox

Demos Constantly Being Updated... ...
