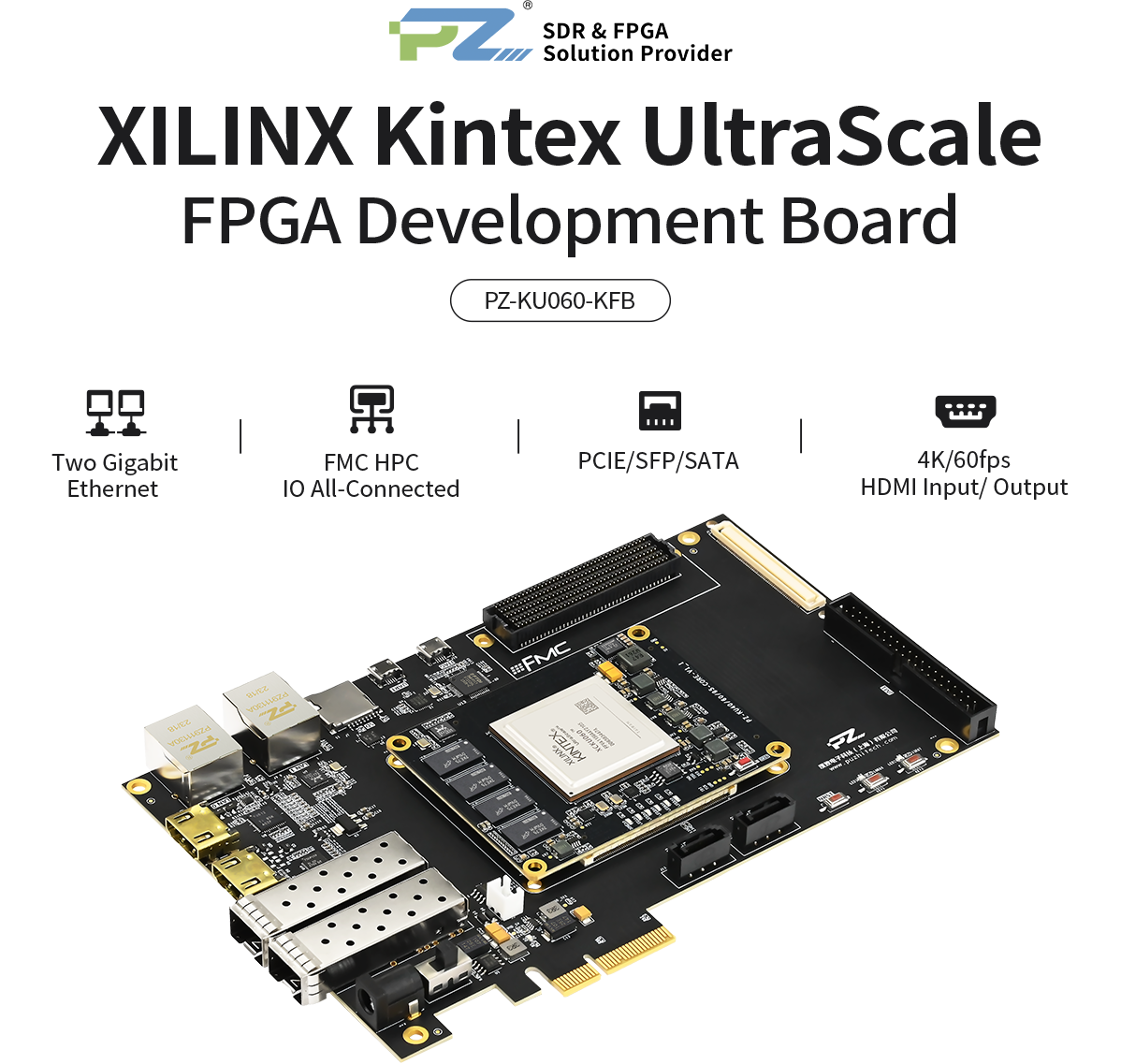

▶ Product Description

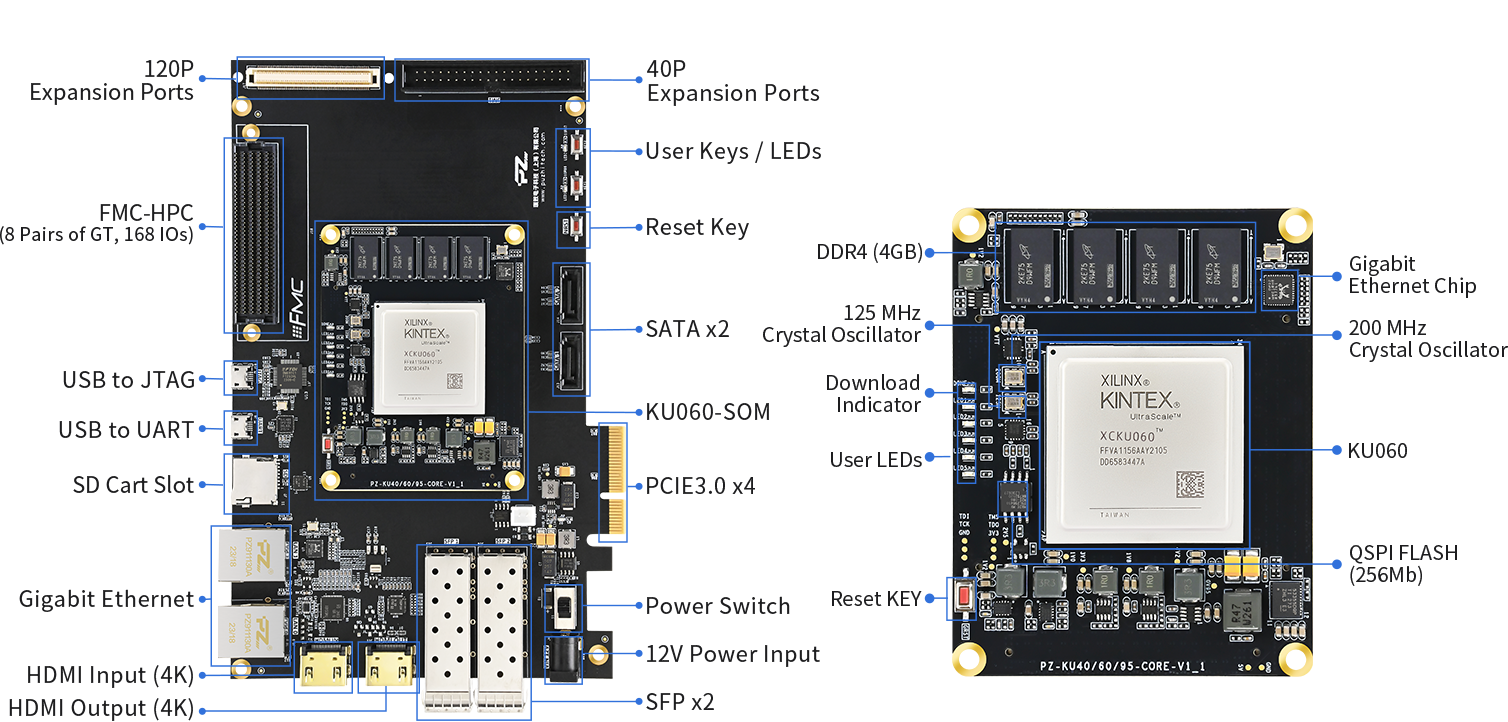

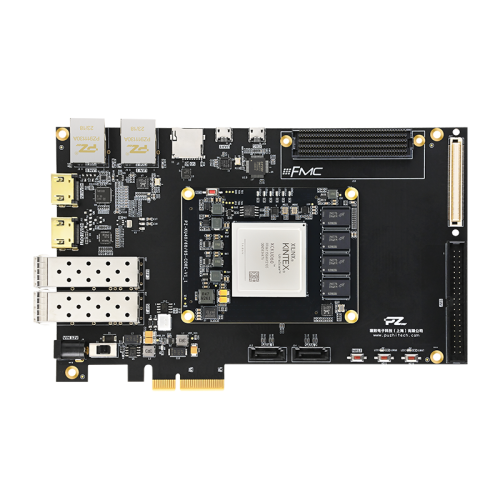

▶ Interface Function Display

▶ Product Parameters

Core Board Main Parameters

FPGA Dev. Board	PZ-KU060-KFB
FPGA Chip	XCKU060-2FFVA1156I
Speed Grade	2
Chip Level	Industrial Grade（-40°C~+85°C）
Logic Cells	726K
Lookup Tables	331680
Flip-Flops	663360
DSP Slices	2760
BLOCK RAM	38Mb
DDR4	4GB/64bit Width
QSPI FLASH	256Mb + 256Mb, to Store Startup Files and User Files
Start-up Mode	JTAG/QSPI, The Default Boot Mode is QSPI
User LEDs	5
Number of GTH	20 Pais of TX/RX
Number of IO	296 single-ended HR: 8 single-ended (default 3.3V) HR: 24 Differential Pairs /48 Single-ended (1.8V/2.5V/3.3V adjustable) HP: 120 Differential Pairs/240 Single-ended (1.2V/1.8V adjustable)
Crystal Oscillator	200MHz Differential Crystal for FPGA 125MHz Differential Crystal for the GT Transceiver Reference Clock
Core Board Form Factors	3.30 inch x 2.55 inch (83.8mm x 64.8mm)

Interfaces and Function

JTAG Downloader	1
UART	1
SD Card Slot Interface	1
Gigabit Ethernet	1
HDMI (4K/60fps)	1 Input, 1 Output
LED, Keys	2 LEDs. 2 Keys
SFP Interface	2
PICE3.0	x4
FMC Interface	HPC (8 Pairs of GT, 168 IOs)
Voltage / Current	12V/3A
Board Form Factors	7.68 inch x 4.53 inch (195mm x 115mm)
Technology	Black Matte. Immersion Gold Process
120Pin Expansion Port	48 Single-ended /24 Differential Pairs (1.2V/1.8Vadjustable)
40Pin Expansion Port	32 Single-ended/16 Differential Pairs Reserve one 40-pin 0.1 inch Expansion Port，to Connect Puzhi Modules (AD/DA, Camera, LCD)，Expansion Port including 5V power supply，3.3V power supply, 6 Ground, 32 IOs

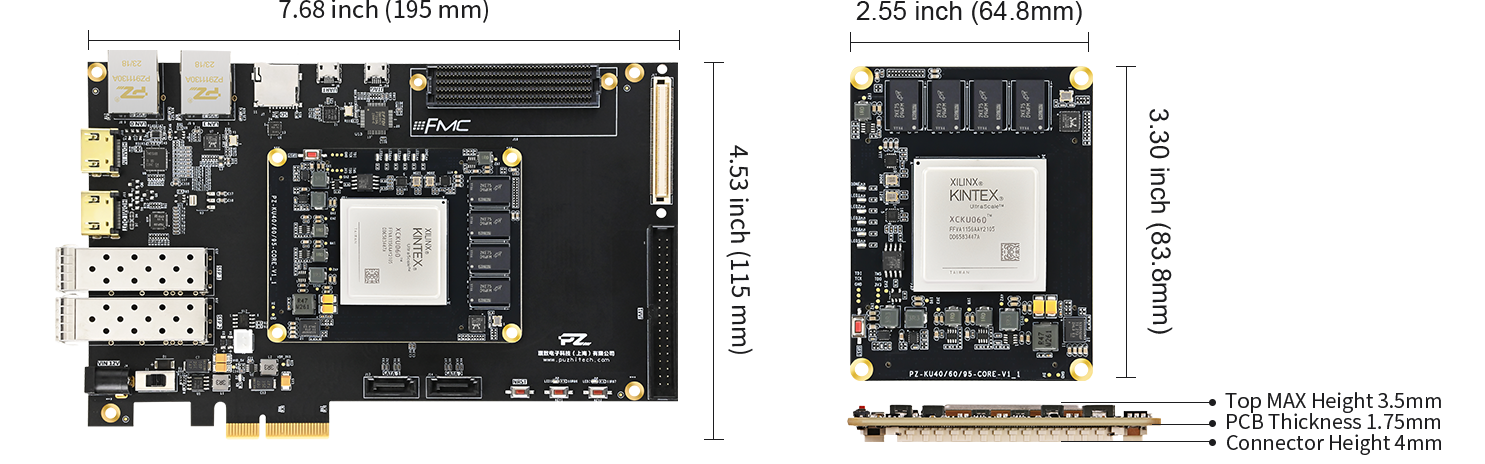

▶ Product Dimensions

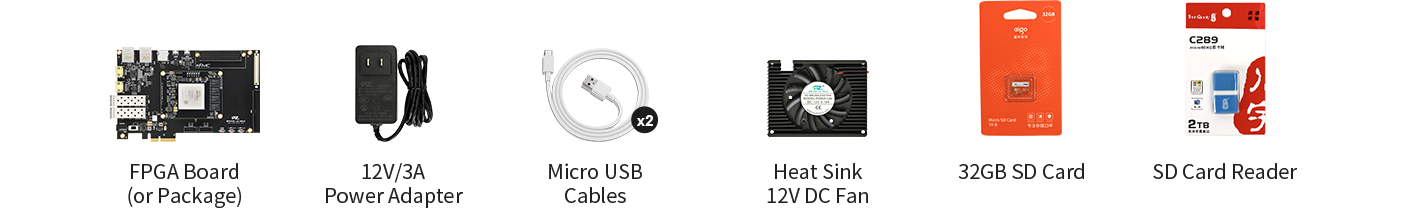

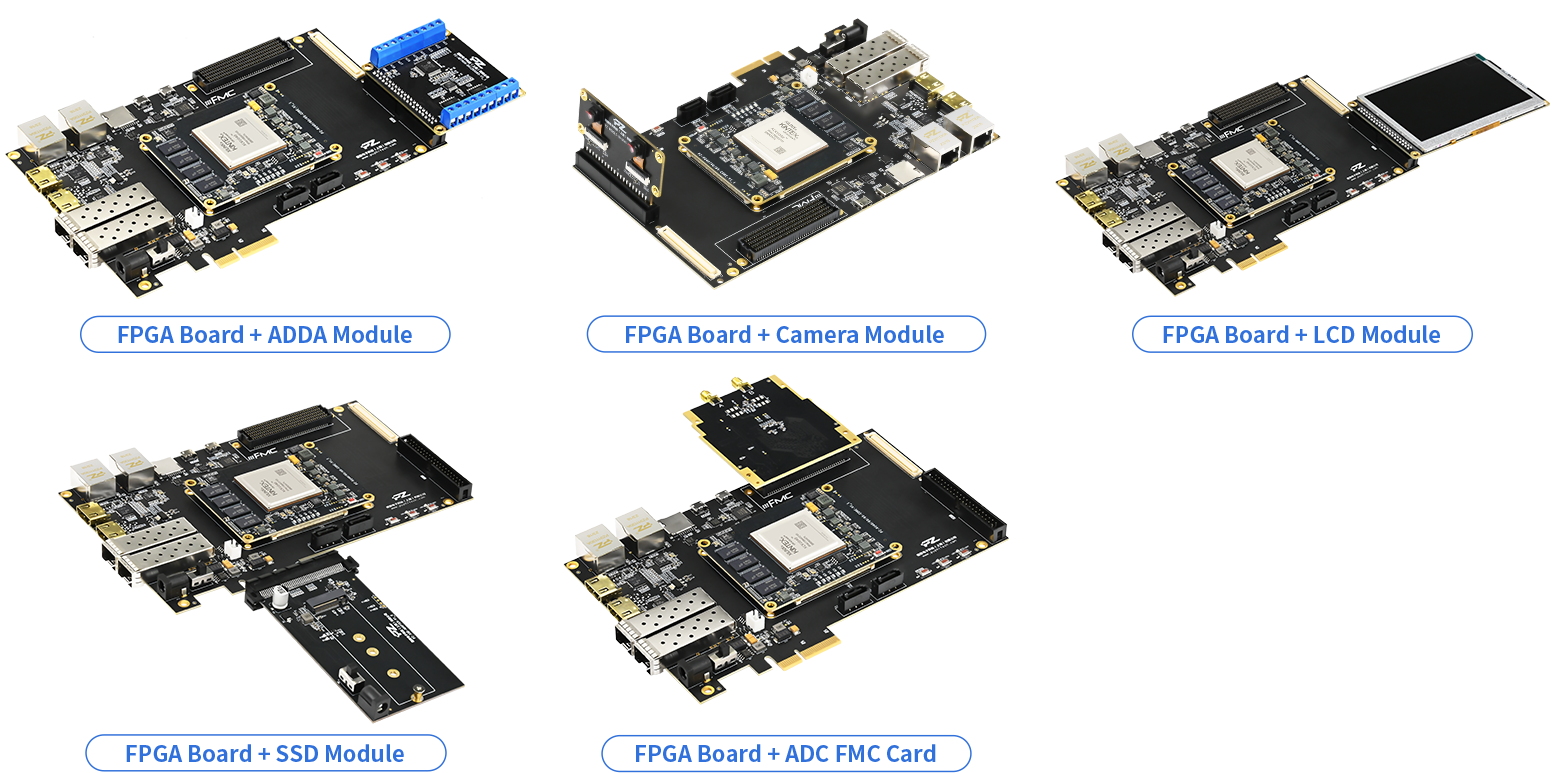

▶ Demos Come with the Board

Contact Customer Service after Purchase Files Saved in Google Drive/ Yandex/ Dropbox

Demos Constantly Being Updated... ...

1
FPGA Logic Demos
- 01.
  Vivado Installation
- 02.
  FLASH Curing
- 03.
  LED Flashing
- 04.
  LED PWM Control
- 05.
  Key Control LED
- 06.
  FPGA on-chip RAM Read and Write
- 07.
  FPGA on-chip ROM Read and Write
- 08.
  FPGA on-chip PLL Configuration
- 09.
  FPGA on-chip FIFO Read and Write
- 10.
  FPGA side DDR4 Control Read and Write
- 11.
  I2C Read and Write E2PROM
- 12.
  Uart Transceiver
- 13.
  SD Card Read and Write
- 14.
  AD-DA Conversion (200KSPS)
- 15.
  LCD Color Bar Display
- 16.
  LCD Output Image Display
- 17.
  SD Card Reads BMP Picture LCD Display
- 18.
  Gigabit UDP Based on RTL8211
- 19.
  QSFP Bit Error Rate
- 20.
  PCIE Speed Test
- 21.
  Aurora Communication
- 22.
  High Speed ADC-AD9643 Acquisition (250MSPS)
- 23.
  UDP Transmission High Speed ADC Data Collection
- 24.
  LCD Waveform Display for High-Speed ADC-AD9643
- 25.
  UDP transmission of OV5640 images for Computer display
2
Microblaze Parts
- 01.
  Microblaze LED
- 02.
  Microblaze Uart
- 03.
  Microblaze GPIO Interrupt
- 04.
  Microblaze Timer Interrupt
- 05.
  Microblaze DMA LOOP
- 06.
  Microblaze XADC
- 07.
  Microblaze Lwip TCP loop
- 08.
  HDMI (4K) Input/Output Loopback Demos
3
FMC Topics(FMC daughter board is required)
- 01.
  USB3.0 (PZ-FL3014)
- 02.
  High Speed ADC (PZ-FL9643S)
- 03.
  High Speed ADC/DAC (PZ-FL4322)
- 04.
  Multi-Channel High-Speed ADC (PZ-FL9643D）
- 05.
  Multi-Channel Domestic High-Speed (PZ-FL2514D)
- 06.
  Ultra High Speed ADC/DAC (PZ-FH8052)
- 07.
  Medium-Speed ADC/DAC (PZ-FL3867)
- 08.
  Multi-Channel Medium Speed DAC (PZ-FL9767D）
- 09.
  Quad 100Gb Ethernet (PZ-FL8710F)
- 10.
  Quad 1000Gb Ethernet (PZ-FL8211F)
- 11.
  Software Defined Radio (PZ-FL9361/PZ-FH9371/PZ-FH9009/PZ-FH9026）
4
PCIE Topics
- 01.
  QT Environment Setup
- 02.
  PCIE GPIO Control
- 03.
  PCIE DDR Cache Interrupt
- 04.
  PCIE Monocular OV5640 Image Experiment
- 05.
  PCIE High-speed ADC Acquisition Experiment
