▶ Product Description

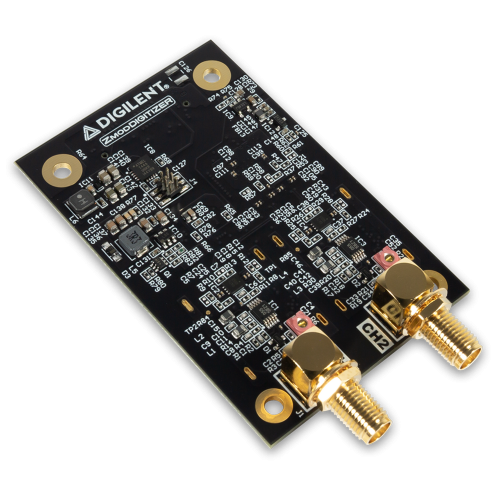

The Digilent Zmod Digitizer is a SYZYGY™ compatible module containing a dual-channel ADC and the associated front end. The Zmod Digitizer is intended to be used with any SYZYGY™ compatible carrier board having the required capabilities.

When coupled to a base board using the SYZYGY™ expansion, like the Eclypse Z7 or Genesys ZU, the combination will serve as a powerful prototyping platform for instrumentation, high-speed control, and SDR. By utilizing these expansion capabilities, users can spend more time on the analytical and system-level aspects of the solution rather than having to focus on the component-level interactions of the devices.

The Zmod Digitizer module is a variant of the similar Zmod Scope module but optimized for RF signal acquisition and frequency-domain analysis. The simpler DC-coupled input and 60 MHz anti-aliasing input filter improves immunity to stray RF radiation and the versatile and very low-jitter on-board clock generator enables acquisition at key rates, including 122.8 MHz often used in SDR applications.

▶ Features

• Channels: 2
• Channel type: single ended
• Resolution: 14-bit
• Input range: ±1V
• Absolute Resolution: 0.13 mV
• Sample rate (real time): 125 MS/s, max
• Input impedance: 1 MΩ || 5 pF
• Analog bandwidth:
• 60+ MHz @ -3 dB
• 20 MHz @ -0.5 dB
• 8 MHz @ -0.1 dB
• Input protected to: ±50V

▶ Target Applications

• Software Defined Radio

▶ What's Included

• Zmod Digitizer 1430-125
• Digilent custom packaging with protective foam

▶ Support Materials

·         User guide

·         Schematic

·         Adapting Projects Using the Zmod Scope for the Zmod Digitizer

·         Digilent Platform Management Utility

·         Using the Eclypse Z7 with WaveForms

·         Declaration of Conformity
